HX-SERIES TOWER SPECIFICATIONS

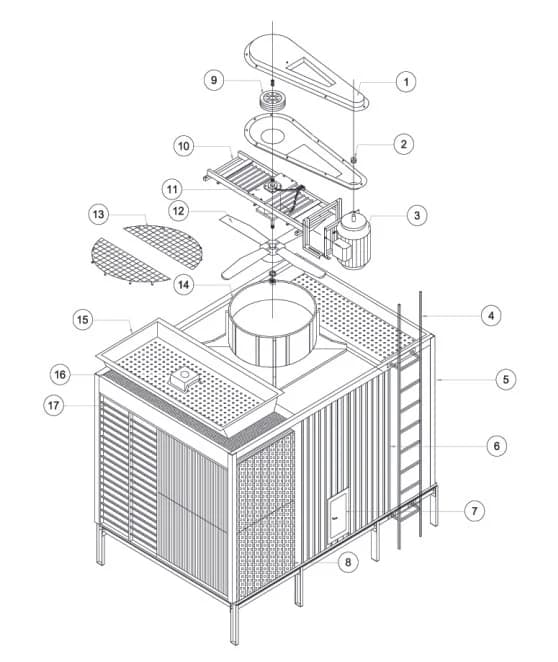

HX-Series Tower Diagram

Item	Descriptions
1	FRP PULLEY COVER
2	MOTOR PULLEY
3	FAN MOTOR
4	HDGS LADDER
5	MAIN FRAME STRUCTURE
6	FRP CASING
7	FRP ACCESS DOOR
8	PVC INFILL
9	FAN PULLEY
10	HDGS FAN HOLDER
11	BEARING BOX
12	CAST ALLOY / FRP AXIAL FAN
13	HDGS FAN GUARD
14	FRP FAN STACK
15	FRP HOT WATER BASIN
16	PVC DISTRIBUTION PACK
17	PVC LOUVER

Make Up Water Calculator

Flow Rate (m³/h)

Inlet Temperature (°C)

Outlet Temperature (°C)

Ambient Wet Bulb Temperature (°C)
