LC-SERIES TOWER SPECIFICATIONS

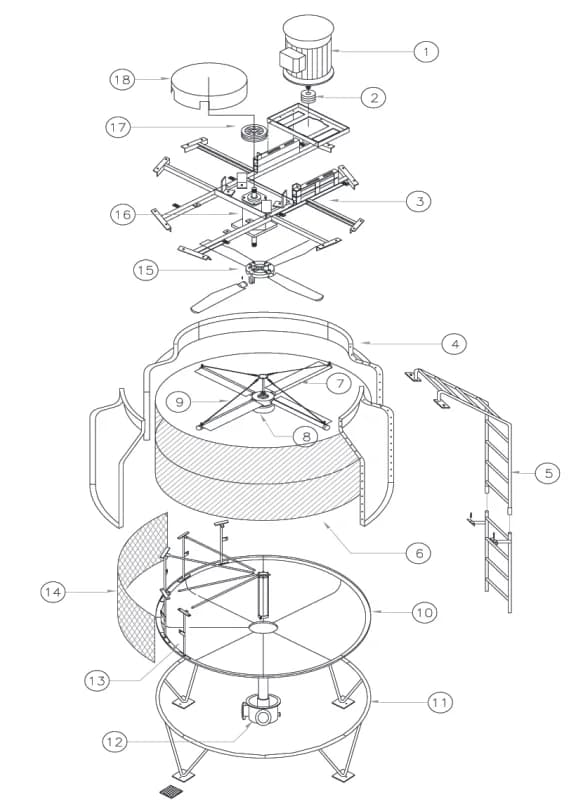

LC-Series Tower Diagram

Item	Descriptions
1	FAN MOTOR
2	MOTOR PULLEY
3	HDGS FAN HOLDER
4	HDGS LADDER
5	FRP CASING
6	PVC INFILL
7	FRP ACCESS DOOR
8	SPRINKLER PIPE
9	SPRINKLER HEAD
10	FRP COLD WATER BASIN
11	MAIN FRAME STRUCTURE
12	WATER PUMP
13	INFILL SUPPORT
14	LOUVER
15	CAST ALLOY / FRP AXIAL FAN
16	BEARING BOX
17	FAN PULLEY
18	FRP PULLEY COVER

Make Up Water Calculator

Flow Rate (m³/h)

Inlet Temperature (°C)

Outlet Temperature (°C)

Ambient Wet Bulb Temperature (°C)

Industry Leaders that used HLF Cooling LC-Series Solutions

Pangkalan Tentera Laut (Lumut)

Dindings Poultry Processing (Ipoh)

Jaya Nets Sdn Bhd (Selangor)

Central Cables Berhad (Melaka)

Roflex Pipe (Nilai)

LC-Series Cooling Tower Brochure
